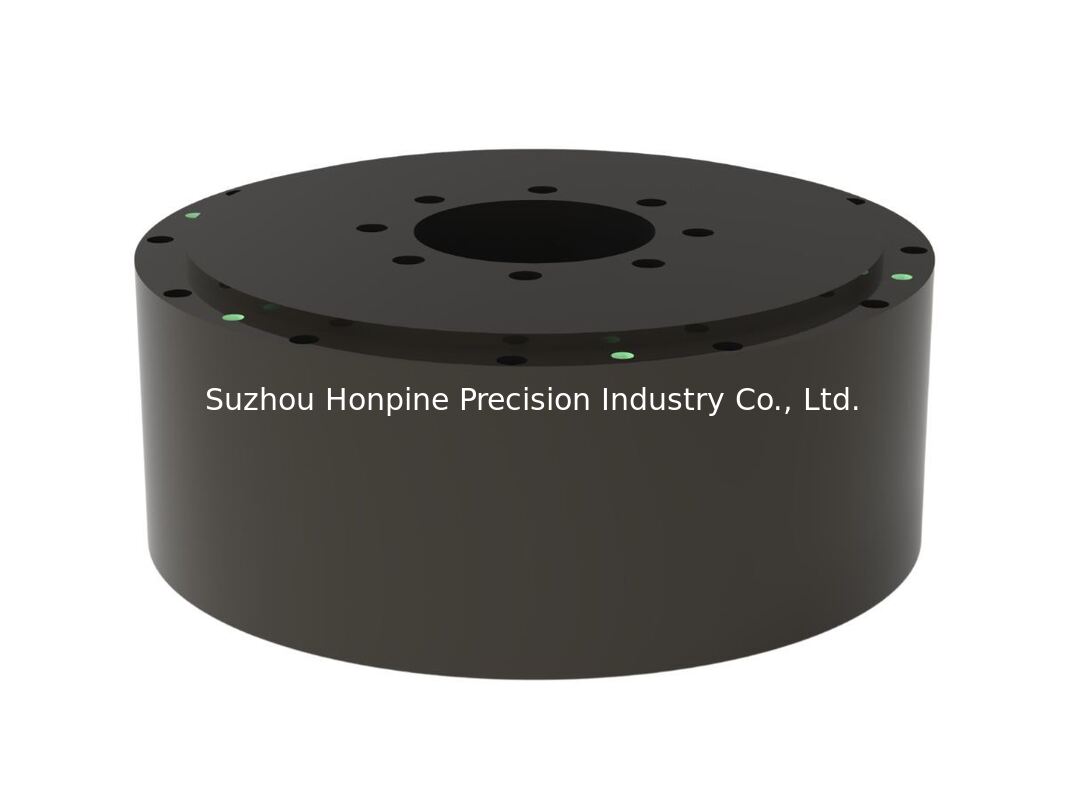

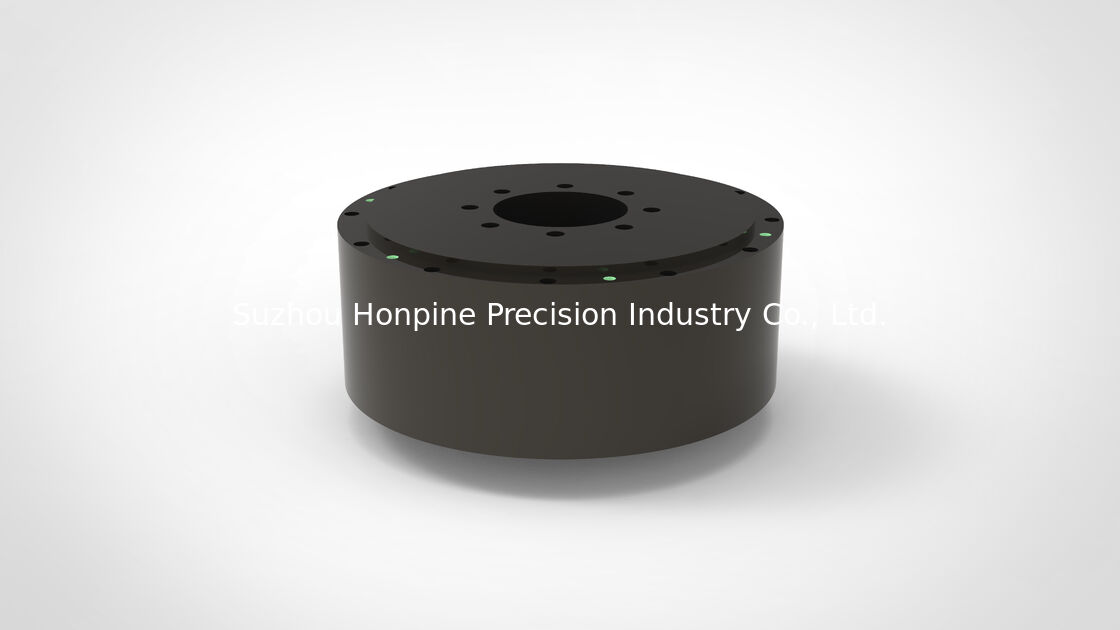

Name: TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: TDB-263-113-NH-A
Availability: InStock

المنزل > المنتجات > Direct Drive Motor >

TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

مكان المنشأ:

الصين

اسم العلامة التجارية:

HONPINE

رقم الموديل:

TDB-263-113-NH-A

اتصل بنا

اطلب اقتباس

TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

تفاصيل المنتج

شروط الدفع والشحن

الحد الأدنى لكمية

تفاصيل التغليف

كرتون مع رغوة

شروط الدفع

تي/تي

منتجات ذات صلة

TDB-112-065-NH-A HONPINE محرك DD المباشر

احصل على أفضل سعر

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

احصل على أفضل سعر

HONPINE TDB-170-125-NH-B المحركات الصناعية الخدمية المحركات المباشرة محرك الدوران DD

احصل على أفضل سعر

TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

وصف المنتج

Description of TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

The TDB-263-113-NH-A is a large direct drive torque motor that combines high torque, high rigidity, and high precision positioning. Its outer rotor structure, Hall‑sensor‑free design, and high‑resolution incremental encoder configuration enable stable and efficient operation in heavy‑duty automation equipment and precision manufacturing applications.
Compared with traditional servo motors, direct drive torque motors offer the following advantages:higher precision,greater torque,higher efficiency,simpler maintenance,more compact installation footprint.

Specification of TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

Performance	Unit	Performance	Unit
Continuous Torque	95 N ·m	Peak Torque	190 N ·m
Continuing Current	7.1 Arms	Peak Current	14.2 Arms
rated power	1493 W	Torque constant	13.4 N ·m/Arms
Resistance@25℃	3.4 Ohms L-L	Inductance	10.8 mH
Back-EMF constant@25℃	10.9 Vrms/rad/s	Moment of Inertia	0.13 Kg ·m^2
Accuracy	±15 Arc sec	Repeatability	±2 Arc sec
Max.Axial Load	4000 N	Max.Moment Load	400 N ·m
Axial Runout	8 um	Radial Runout	8 um
Max.Speed	150 rpm	Mass of Motor	23.8 Kg
Pole Number	40	Resolution	23 Bit Biss-C
Diameter	263 mm	Height	113 mm

Introduction of HONPINE Direct Drive Torque Motor Factory

HONPINE specializes in the R&D and manufacturing of direct drive torque motors, having established a 5,000-square-meter facility dedicated to the development, production, and administration of its direct drive motor product lines. The facility is equipped with a comprehensive array of advanced machinery, including dynamometers, fully automated winding machines, CNC machining centers, laser interferometers, automated potting machines, and salt spray test chambers. Furthermore, the company has established sales and after-sales service centers in Singapore, Suzhou, and Shenzhen. To support the localization of semiconductor equipment manufacturing, the company commissioned a precision assembly cleanroom and an R&D laboratory in 2024. HONPINE has successfully obtained quality certifications such as ISO9001 and CE, and its independently developed products have been awarded dozens of patents for both inventions and utility models.
